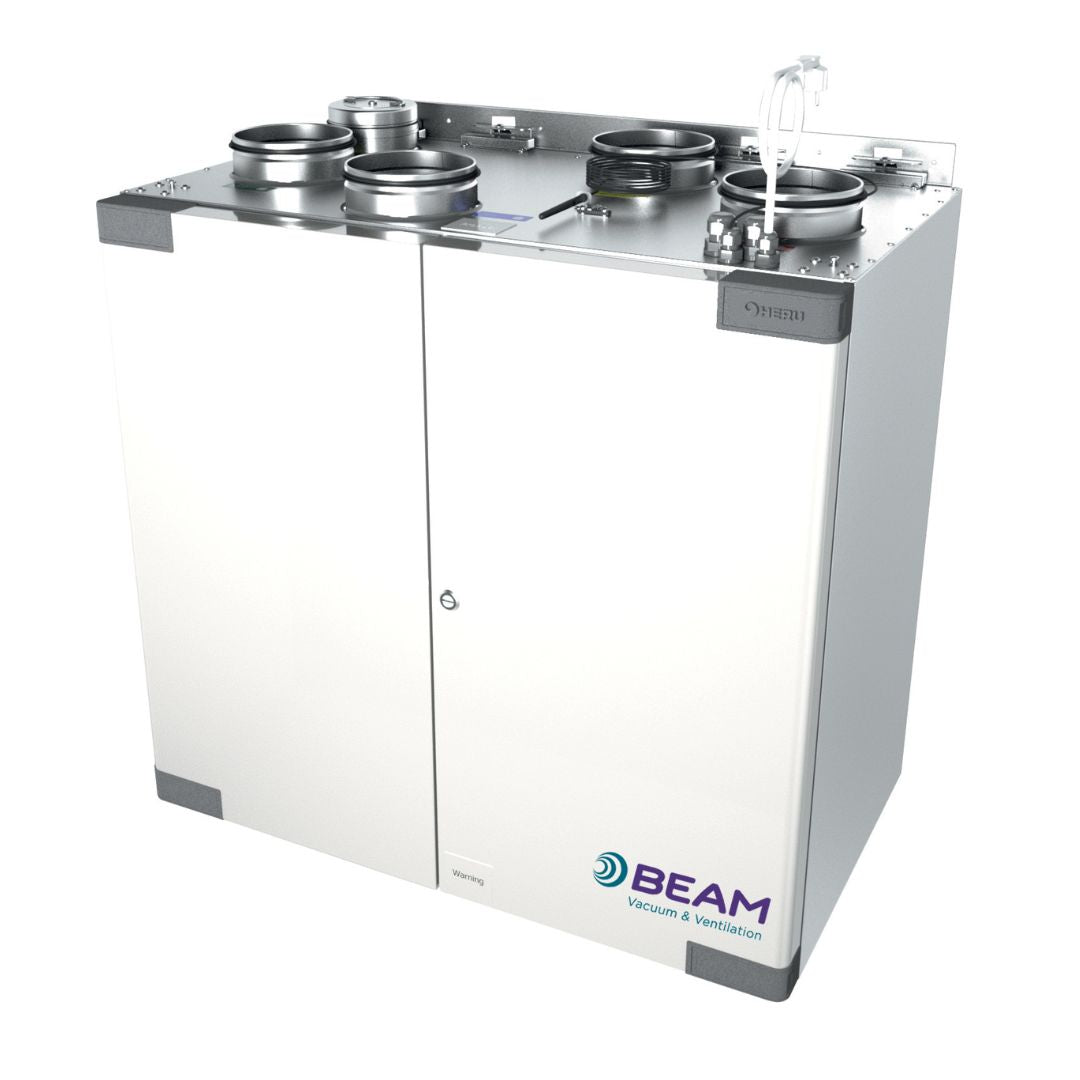

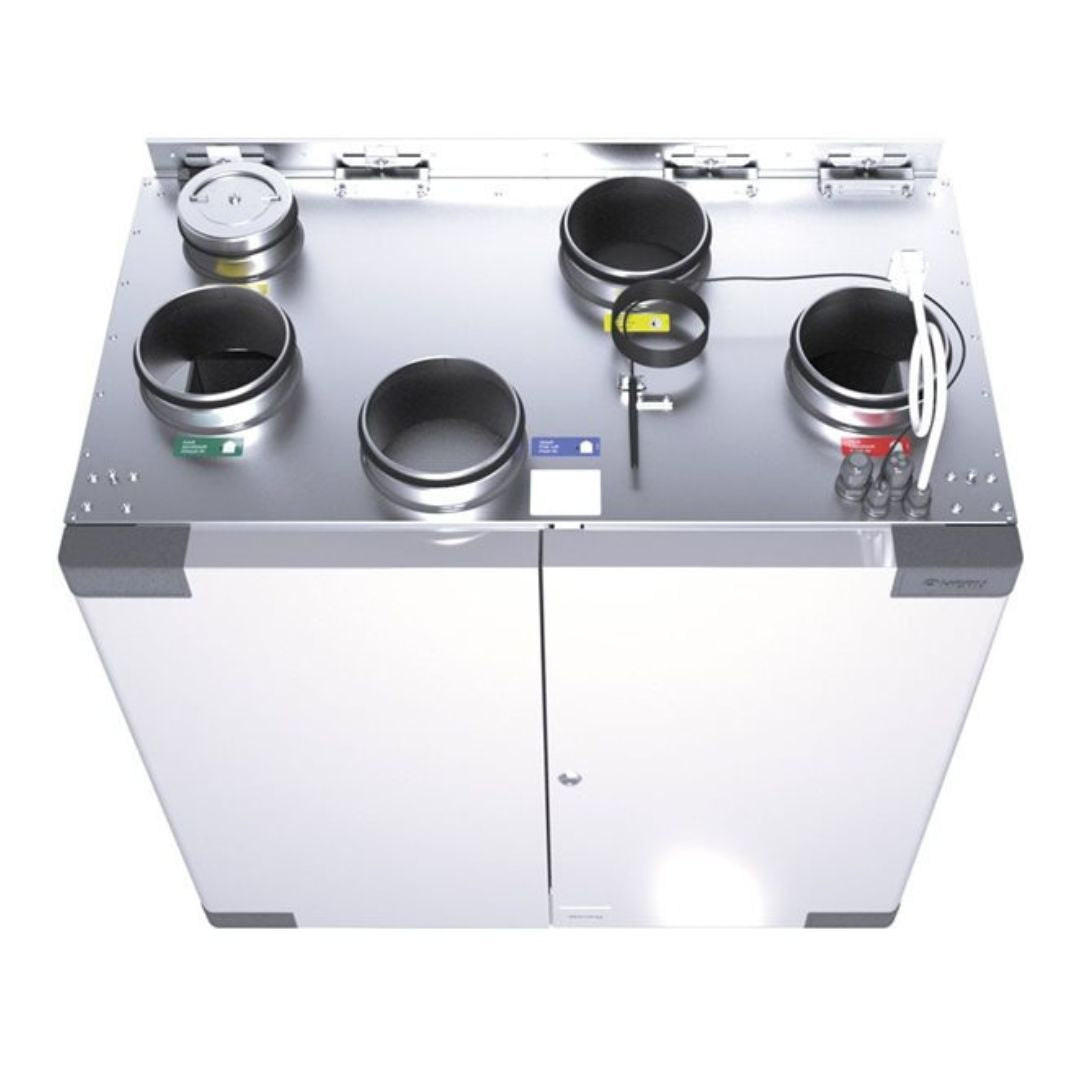

Beam Axco HERU NG 100T Rotary Wheel Technology MVHR Unit

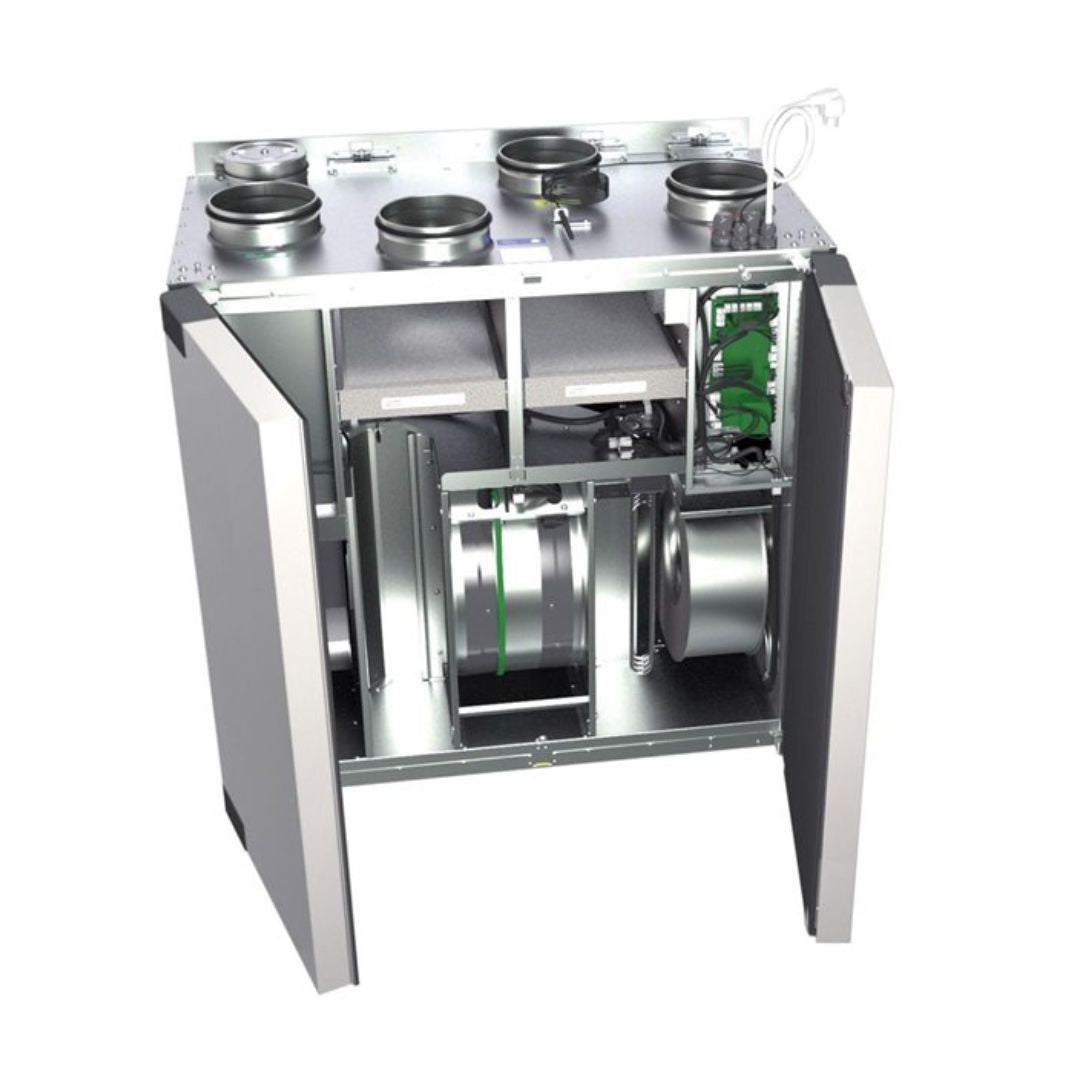

• Regenerative, non-hygroscopic, aluminium rotating heat exchanger located in the centre of the unit.
• Low energy, high performance EC fans
  Up to 85% heat recovery efficiency
• Large surface Pollen Grade F7 filter (inlet and outlet) is the highest specification available for any residential ventilation system
• Increases thermal comfort by heat recovery or night cooling recovery
• Low sound level
• Constructed in Galvanized and Aluzinc Steel
• Insulated with 50mm dense mineral wool for quietness and facilitates use in any warm or cold space
• No condensate drain required
• Comes complete with: Wireless Intelligent IQ Control System
• Intelligent control system for a healthy and energy-efficient indoor climate.
• Connects wirelessly to your AXCO HERU MVHR unit with an operating range of approximately 50m through walls and floors.

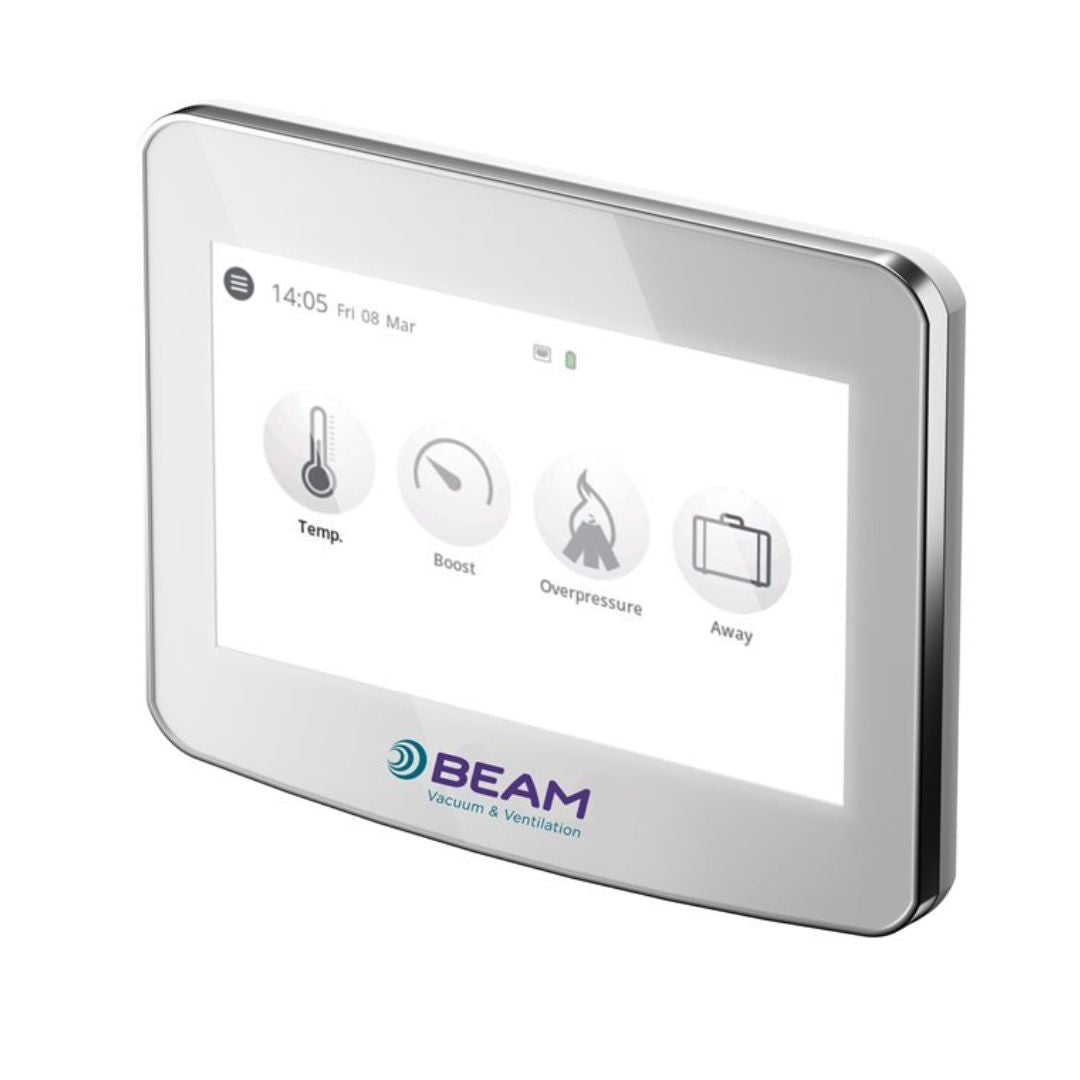

• User friendly 4.3” touch panel (including docking station) with status bar for quick overview
• APP – ability to control / monitor through smartphone App
• Colour Theme – choose light or dark colour to suit your home
• Holiday Mode – energy saving facility
• 7 Day Scheduler – set up to your home requirements
• Clock – Screen saver shows time and internal/external temperatures
• Alarm History – Real-time diagnostics functionality
• VOC Sensor – Supports regulation of VOC

Fan Speeds – RPM
Unit Model 100T
Max Flow - Free Blowing (L/S) 116
Max Pressure @ 100pa m³h 378
SP1 W|M³/h 0.37
% Heat Efficiency 85
Sound Level @3m (dba) 41
Weight (KG) 66
Inlet Diameter (mm) 125
Inlet Orientation Top
Touch Panel ✓
App Controlled via Cloud ✓
Regenerative Heat Recovery ✓
Max Speed (RPM) 3600
Dimension (L x W x H) (mm) 796 x 483 x 705

2 year warranty
